XK7130 Bed Type CNC Milling Machine High Accuracy Medium Duty Universal Metal

Brand Name : Zaozhuang NO.1

Model Number : XK7130

Certification : CE,ISO

Place of Origin : Shandong, China

MOQ : 1 set

Price : 20000USD

Payment Terms : T/T

Supply Ability : 1000 sets/month

Delivery Time : 15 days after getting the deposit.

Packaging Details : Export standard wooden case or as customers' requirement

Table size : 800×300mm

X–axis travel : 600mm

Y–axis travel : 360mm

Z–axis travel : 450mm

Spindle nose to table : 120-520mm

Spindle center to column surface distance : 380mm

Cutting feed rate : 1-8000mm/min

Maximum table load : 200kg

Main motor power : 5.5kw

Contact Now

XK7130 High Accuracy Medium Duty Universal Metal Bed Type CNC Milling Machine
Product Description:
1. XK7130 adopt high quality resin sand wear-resistant castings, strong and tough bones, super large column, wide and low seat, honeycomb structure. After two annealing treatment and vibration aging, remove stress to ensure long-term deformation.
2.X,Y,Z shaft is hard rail quenching treatment to increase the reliable performance of machine tools.
3. three-axis drive adopts high precision, high rigidity ball wire rod pair, high precision special bearing, which ensures the
positioning accuracy and repeated positioning accuracy.
4. adopts the protective cover of the guide rail of the sealed machine tool, which effectively protects the guide rail and the
lead screw, and prolongs its service life.
Standard Configuration:
1. Guangtai 130ime system

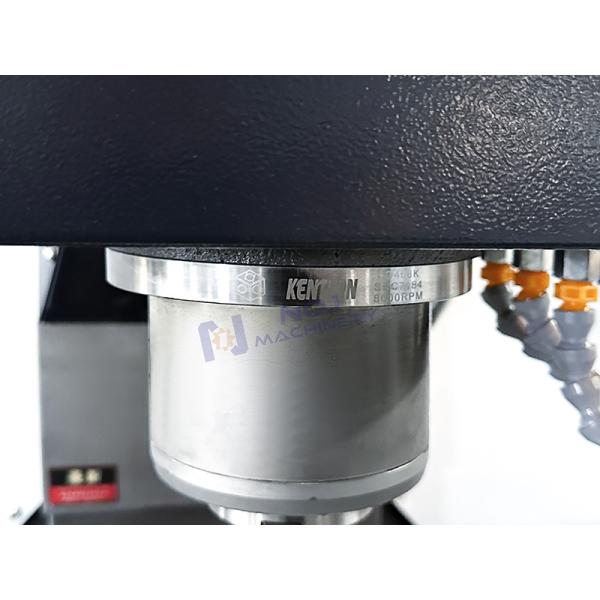

2.bt40 Taiwan 8000 RPM spindle
3.Taiwan  hiwin screw
4.Taiwan hiwin 3 axis roller linear rails
5.HT250 high quality castings
6.Electrical cabinet cold  air exchanger

Product Specification:

Project
Unit
XK7136
XK7130
X–axis travel
mm
900
600
Y–axis travel
mm
360
360
Z–axis travel
mm
500
450
Spindle nose to table
mm
100-600
120-520
Spindle center to column surface distance
mm
460
380
Cutting feed rate
mm/min
1-10000
1-8000
Table size
mm
1250×360
800×300
Maximum table load
kg
400
200
Spindle speed
rpm
8000
8000
Main motor power
kw
5.5
5.5
Spindle taper

BT40
BT40
positioning accuracy
mm
0.02
0.008
Repeat accuracy
mm
0.015
0.005
Machine weight
kg
2800
2800
Dimensions
mm
2380×1900×2350
2000×1800×2450
Details Display:

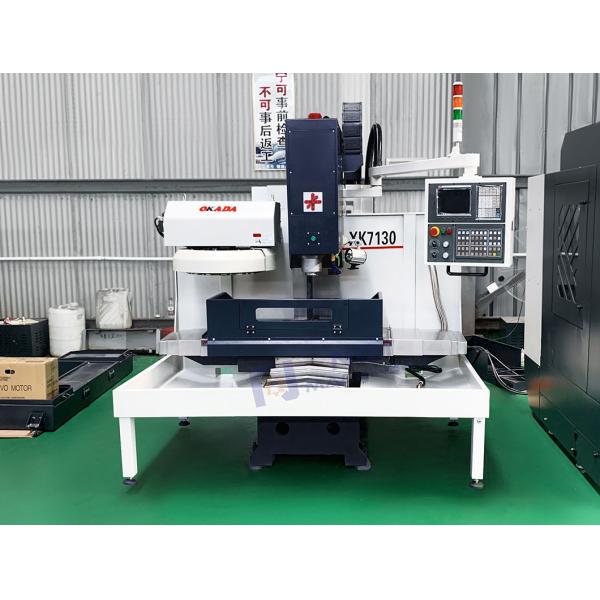

XK7130 Bed Type CNC Milling Machine High Accuracy Medium Duty Universal Metal

XK7130 Bed Type CNC Milling Machine High Accuracy Medium Duty Universal Metal

XK7130 Bed Type CNC Milling Machine High Accuracy Medium Duty Universal Metal

XK7130 Bed Type CNC Milling Machine High Accuracy Medium Duty Universal Metal
