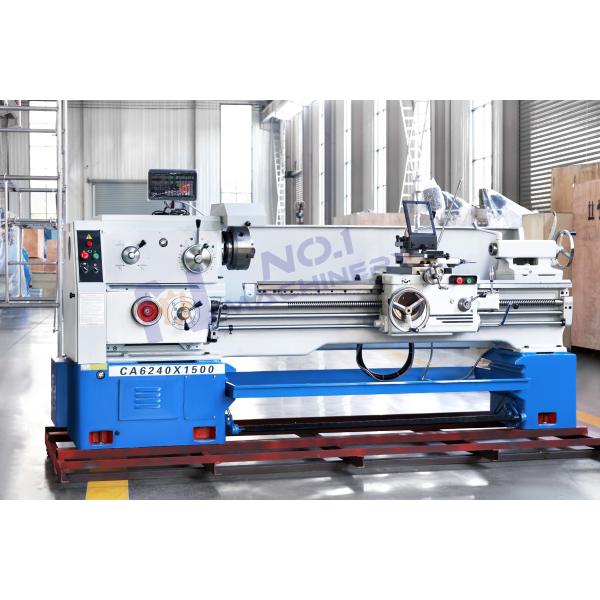

CA6240 Lathe Machine 1500mm Gap Bed Horizontal Torno Medium Duty Capacity New Metal Processing
The CA6240 is a classic horizontal manual lathe featuring a high-strength cast iron bed and a precision gear drive system, ensuring stable machining and durability. With a spindle diameter of 52/80mm and a maximum swing diameter of 400mm, it is equipped with a 7.5kW main motor and a 25x25mm Powerful Tool Holder. It can perform a variety of turning operations, including external cylindrical, internal bore, and thread turning, making it widely used in machinery manufacturing and maintenance.
Standard Configuration:
400mm Guide rail width 400mm
Skateboard Box with rapid advance and retreat
Processing thread variety, no need to change gear
Powerful Tool Holder:25x25mm
Can be heavy cutting
Optional Configuration:
Center rack and knife rack
Chuck protection, Tool Holder Protection, lead screw protection
Rear baffle
Digital display
Pedal to the brakes
Change the tool holder quickly
Four-jaw Chuck
Drill Chuck Joint Rod
Taper test scale
Specification:
| PARAMETER ITEM | UNIT | CA6140 | CA6240 | CA6150 | CA6250 |
| Max. swing over bed | mm | 400 | 400 | 500 | 500 |
| Rotation diaeter on tool post | mm | 210 | 210 | 300 | 300 |
| Swing diameter in saddle x effective length | mm | - | 630x210 | - | 720x210 |
| Maximum workpiece length / Maximum turning length | mm | 750/650 1000/900 1500/1400 2000/1900 |
| Distance from spindle center to bed plane guide | mm | 205 | 205 | 250 | 250 |
| Spindle Bore/Spindle Bore Front Taper | | Φ52/MT6[80] |
| Spindle speed series forward/reverse | | 24/12 |
| Spindle speed range forward | r/min | 50Hz:1-1600 60Hz:12-1680 |
| Reverse | r/min | 50Hz:14-1580 60Hz:16.8-1896 |
| Vertical feed/Standard feed | mm/r | 0.08-1.59 |
| Minimum feed | mm/r | 0.028-0.054 |
| Maximum feed | mm/r | 0.86-3.16 |
| Rapid moving speed of tool holder | m/min | portrait4 horizontal2 |
| Max stroke of upper/lower turret | mm | 140/320 | 140/320 | 140/320 | 140/420 |
| Rotation angle of tool rest turntable | . | ±90 |
| Distance from spindle centerline to tool support surface | mm | 26 |
| Tool holder section size | mm | 25x25 |
| Lead screw pitch | mm | 12 |
| Main motor power | kw | 7.5 |
| weight of lathe (750mm) | kg | 1990 | 1990 | 2060 | 2060 |
| weight of lathe (1000mm) | kg | 2070 | 2070 | 2140 | 2140 |
| weight of lathe (1500mm) | kg | 2220 | 2220 | 2290 | 2290 |
| weight of lathe (2000mm) | kg | 2570 | 2570 | 2640 | 2640 |
| Lathe outline size(750mm) | mm | 2418x1000x1267 | 2418x1000x1267 | 2418x1037x1312 | 2418x1037x1312 |
| Lathe outline size(1000mm) | mm | 2668x1000x1267 | 2668x1000x1267 | 2668x1037x1312 | 2668x1037x1312 |
| Lathe outline size(1500mm) | mm | 3168x1000x1267 | 3168x1000x1267 | 3168x1037x1312 | 3168x1037x1312 |
| Lathe outline size(2000mm) | mm | 3668x1000x1267 | 3668x1000x1267 | 3668x1037x1312 | 3668x1037x1312 |
