High Performance CNC Milling Machine XK6132 Heavy Duty Metal Knee Type Milling Machine

Brand Name : Zaozhuang NO.1

Model Number : XK6132

Certification : CE,ISO

Place of Origin : Shandong, China

MOQ : 1 set

Price : 17000USD

Payment Terms : T/T

Supply Ability : 1000 sets/month

Delivery Time : 15 days after getting the deposit.

Packaging Details : Export standard wooden case or as customers' requirement

Table size : 1500x320mm

X/Y/Z–axis travel : 900x310x410mm

Spindle Taper : ISO:50/7:24

Spindle speed range (series) : 30-1500/18

Table rotation angle (optional) : ±45°

T-groove : 3-14-70

Main motor power : 7.5kw

Contact Now

High-performance CNC Milling Machine XK6132 Heavy Duty Knee Type Metal Milling Machine
Product Description:
The XK6132 is a high-performance horizontal CNC milling machine featuring a sturdy bed structure, ensuring stable machining. Equipped with a CNC system and supporting three-axis linkage, it is suitable for milling, boring, and drilling complex housings, gears, and other large parts.
Standard Configuration:
1. Guangtai 130 system
2.Three axis CNC
3.Manual transmission of spindle
4.Electronicoil pump
5.Three-axis hard rail
Optional Configuration:
1. System :GSK,KND
2.Pneumatic broach
3.CNC dividing head
4.Top Tailstock
5.Fully protected sheet metal
6.The table rotates
Product Specification:
PARAMETER ITEM
UNIT
XK6132
XK6140
Size of worktable
mm
1500x320
1700x400
Table travel
mm
900x310x410
1000x330x400
T-groove
mm
3-14-70
3-18-90
Spindle Taper
-
ISO:50/7:24
ISO:50/7:24
Table rotation angle (optional)
.
±45°
±45°
Distance between spindle end face and table top
mm
20-370
30-410
Bed Vertical Guide to the spindle center line distance
mm
225-505
275-625
Spindle speed range(series)
rpm
30-1500/18
30-1500/18
Fast moving speed(x/y/z)
mm/min
6000/6000/3000
6000/3000/6000
Positioning accuracy
mm
0.020/300
0.05/300
Repeat positioning accuracy
mm
0.010/300
0.025/300
Main Drive motor power
kw
7.5
11
Coolingpump motor power
kw
0.125
0.125
Extemnal dimensions
mm
2272x1825x2094
3310x2200x2394
Weight of machine tool
kg
2850
4250

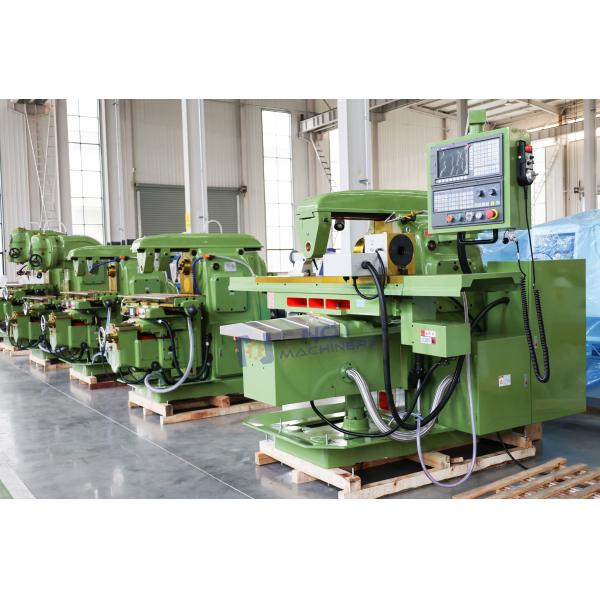

Details Display:

High Performance CNC Milling Machine XK6132 Heavy Duty Metal Knee Type Milling Machine

High Performance CNC Milling Machine XK6132 Heavy Duty Metal Knee Type Milling Machine

High Performance CNC Milling Machine XK6132 Heavy Duty Metal Knee Type Milling Machine

High Performance CNC Milling Machine XK6132 Heavy Duty Metal Knee Type Milling Machine
