GMC2516 Gantry CNC Milling Machine BT50 Taiwan Spindle CNC Machining Centre

Name: GMC2516 Gantry CNC Milling Machine BT50 Taiwan Spindle CNC Machining Centre
Brand: Zaozhuang NO.1
Price: 70000 USD

Buy cheap GMC2516 Gantry CNC Milling Machine BT50 Taiwan Spindle CNC Machining Centre product

Brand Name : Zaozhuang NO.1

Model Number : GMC2516

Certification : CE,ISO

Place of Origin : Shandong, China

MOQ : 1 set

Price : 70000USD

Payment Terms : T/T

Supply Ability : 100 sets/month

Delivery Time : 45 days after getting the deposit.

Packaging Details : Export standard wooden case or as customers' requirement

Work table size (width × length) (mm) : 1400x2600

X/Y/Z Axis stroke（mm） : 2500*1650*800

Width of gantry(mm) : 1660

high of gantry(mm) : 1100

Distance from spindle end face to work table (mm) : 250-1050

Spindle Specifications (Model/Installation Diameter) : BT50-Φ190

Spindle motor recommended（kw） : 22

T-shaped groove for table(mm) : 7-22X170

Tool magazine : Arm24

Contact Now

GMC2516 Gantry Cnc Milling Machine BT50 Taiwan Spindle Cnc Machining Centre

Product Description:

The GMC2516 is a high-performance gantry machining center featuring rigid bridge-type construction and precision linear guides for superior accuracy. With high-power spindle and smart CNC system, it excels in precision machining of large complex parts, ideal for mold, automotive and heavy machinery manufacturing.

Standard Configuration:

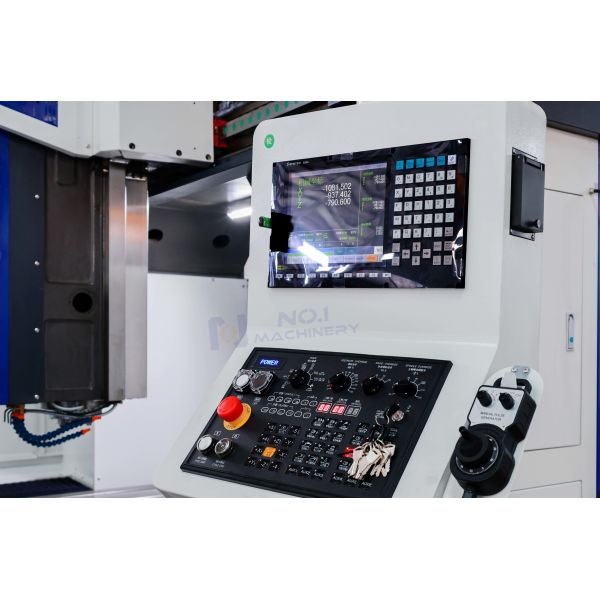

syntec 22ma control  system
Bt50 Taiwan 8000 RPM spindle
Taiwan  hiwin screw
Taiwan hiwin 3 axis roller linear rails
Taiwan OKADA 24 -Disc- atc
Electrical cabinet cold  air exchanger

Detailed Configuration:

spindle unite:kenturn/OKADA/volis
electricals:Schneider
tool cylinder:tenio
lubrication pump:HERG
bearing:SKF/NACHI

Product Specification:

  	 			Item Model
 			GMC2016
 			GMC2516

 			Work table size (width × length) (mm)
 			1300*2000
 			1300*2000

 			Stroke in the moving direction of the table (X-axis mm)
 			2000
 			2500

 			Stroke in the moving direction of the spindle carriage (Y-axis mm)
 			1650(tool change stroke 1850)
 			1650(tool change stroke 1850)

 			Stroke in the up and down movement direction of the spindle (Z axis mm)
 			800
 			800

 			Gantry width (mm)
 			1660
 			1660

 			Gantry is too high (mm)
 			1100
 			1100

 			Distance from spindle end face to work table (mm)
 			250-1050
 			250-1050

 			Table T-slot (number - size x spacing)
 			7-22×170
 			7-22×170

 			Spindle Specifications (Model/Installation Diameter)
 			BT50/Φ190
 			BT50/Φ190

 			Spindle transmission mode
 			belt
 			Speed 6000r/min
 			Speed 6000r/min

 			The transmission ratio of the pulley is standard 1.5:1; (optional 1:1)
 			The transmission ratio of the pulley is standard 1.5:1; (optional 1:1)

 			ZF deceleration + belt (optional)
 			The speed is 6000r/min and the transmission ratio is 4:1;
 			The speed is 6000r/min and the transmission ratio is 4:1;

 			Gear Head (Weimars)
 			Maximum speed 6000r/min Transmission ratio 4.4:1
 			Maximum speed 6000r/min Transmission ratio 4.4:1

 			Rapid traverse feed rate (m/min)
 			15
 			15

 			Cutting feed rate (m/min)
 			10
 			10

 			X, Y, Z axis ball screw specifications/pitch
 			X: 6310, Y: 5010, Z: 5010
 			X: 6312, Y: 5010, Z: 5010

 			X, Y, Z axis guide rail specifications / number of sliders
 			X axis: roller guide 55/6;
 			X axis: roller guide 55/8;

 			Y axis: roller guide 55/4;
 			Y axis: roller guide 55/4;

 			Z axis: rectangular slide
 			Z axis: rectangular slide

 			X, Y, Z axis servo motor transmission mode and transmission ratio
 			X, Y, Z axes are directly connected
 			X, Y, Z axes are directly connected

 			Spindle motor selection recommendation
 			22kW wide area motor
 			22kW wide area motor

 			X, Y, Z three-phase servo motor recommendation
 			≥ X: 38N m; Y: 30N m; Z: 30N m (brake)
 			≥ X: 38N m; Y: 30N m; Z: 30N m (brake)

 			Optical machine dimensions
 			5590*3630*3830
 			6590*3630*3830

 			(length × width × height) (mm)

 			Workbench load (t)
 			4
 			5

 			Light machine weight about (t)
 			16
 			18

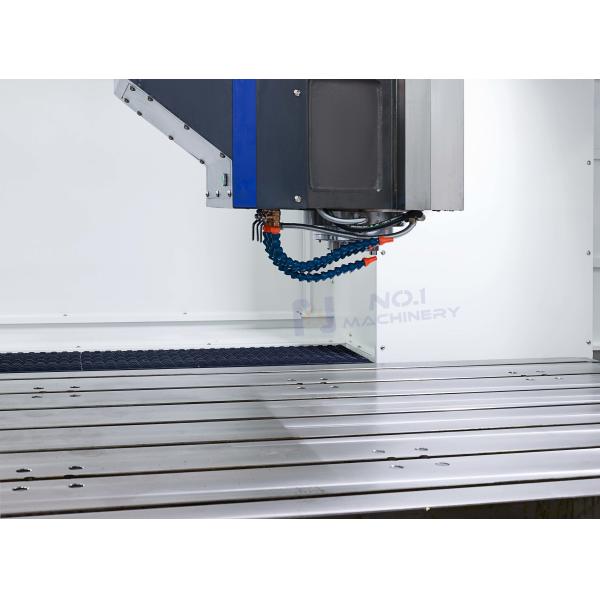

Details Display:
