GMC1612 Fixed Column Gantry Machining Center Heavy Duty CNC Gantry Milling Machine

Brand Name : Zaozhuang NO.1

Model Number : GMC1612

Certification : CE,ISO

Place of Origin : Shandong, China

MOQ : 1 set

Price : 47000USD

Payment Terms : T/T

Supply Ability : 100 sets/month

Delivery Time : 45 days after getting the deposit.

Packaging Details : Export standard wooden case or as customers' requirement

Work table size (width × length) (mm) : 1700x1050

X/Y/Z Axis stroke（mm） : 1600*1300*700

Width of gantry(mm) : 1250

high of gantry(mm) : 1060

Distance from spindle end face to work table (mm) : 100-900

Spindle Specifications (Model/Installation Diameter) : BT40-Φ155

The capacity of Tool storage : 24

Contact Now

GMC1612 Heavy Duty Cnc Gantry Milling Machine Fixed-colum Gantry Machining Center
Product Description:
This gantry machining center is used in CNC milling, boring, drilling, tapping, processing of steel, cast steel, cast iron etc.. And also be used for small batch spare parts, processing and manufacturing, of complex, high precision parts processing more show its superiority, also can compose the automatic production line for mass production, to ensure the efficient production.
Standard Configuration:

1.syntec 22ma control  system
2.Bt40 Taiwan 8000 RPM spindle
3.Taiwan  hiwin screw
4.Taiwan hiwin 3 axis roller linear rails
5.Taiwan OKADA 24 -Disc- atc

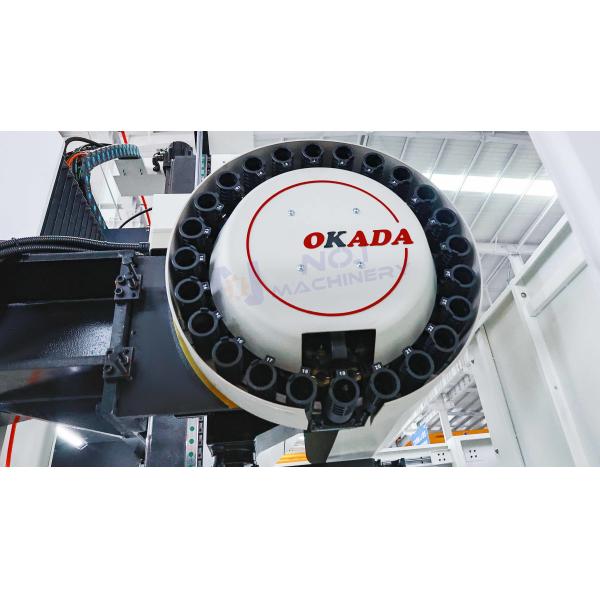

6.Electrical cabinet cold  air exchanger
Product Specification:
Item model
Unit
GMC1612
Size of worktable
mm
1000*1600
(X)Table move direction stroke
mm
1600
(Y)Spindle slide moving direction stroke
mm
1300(1450)
(Z)Spindle up and down move direction stroke
mm
800
Width of gantry
mm
1300
High of Gantry
mm
1060
Distance between spindle end face and worktable surface
mm
190-990
T-shaped groove for table
mm
7-22-140
Spindle specifications
-
BT50-190
Spindle transmission mode
Belt
rpm
6000; (1.5:1)

ZF+Belt

6000; (4:1)

Gear Head

6000; (4.4:1)
Fast moving feed speed
m
15
Cutting feed rate
m
10
X/Y/Z axis ball guide gauge/pitch
mm
5010/5010/5010
X/Y/Z axis quide gauge/slider quantity
-
X: 45/6 Roller rail
Y: 45/6 Roller rail
Z: Rectangle ram
X/y/z axis servo motor drive mode and drive ratio
-
Direct
Spindle motor recommended
kw
22
X/Y/Z three-phase servo motor recommended
NM
38/30/30
Dimension of optical machine
mm
3650*2400*3320
Load-bearing table
T
2
Casting Machine
Kg
11

Details Display:

GMC1612 Fixed Column Gantry Machining Center Heavy Duty CNC Gantry Milling Machine

GMC1612 Fixed Column Gantry Machining Center Heavy Duty CNC Gantry Milling Machine

GMC1612 Fixed Column Gantry Machining Center Heavy Duty CNC Gantry Milling Machine

GMC1612 Fixed Column Gantry Machining Center Heavy Duty CNC Gantry Milling Machine
