GMC2012 5 Axis Gantry CNC Machine 2 Meter CNC Milling Machine

Brand Name : Zaozhuang NO.1

Model Number : GMC2012

Certification : CE,ISO

Place of Origin : Shandong, China

MOQ : 1 set

Price : 49000USD

Payment Terms : T/T

Supply Ability : 100 sets/month

Delivery Time : 45 days after getting the deposit.

Packaging Details : Export standard wooden case or as customers' requirement

Work table size (width × length) (mm) : 1000*2000

X/Y/Z Axis stroke（mm） : 1600*1300*800

Width of gantry(mm) : 1300

high of gantry(mm) : 1060

Distance from spindle end face to work table (mm) : 190-990

Spindle Specifications (Model/Installation Diameter) : BT50-190

Spindle motor recommended（kw） : 22

Contact Now

GMC2012 Cnc Gantry Machining Center 2 Meter 5 Axis Cnc Milling Machine Price
Product Description:
This CNC gantry machining center is ideal for heavy-duty metal processing, offering high precision with a repeatability of 0.004 mm. It supports various CNC systems like Fanuc and Siemens, and has a rapid feed speed of up to 900 m/min, making it suitable for your machining needs.
Standard Configuration:

1.syntec 22ma control  system
2.Bt40 Taiwan 8000 RPM spindle
3.Taiwan  hiwin screw
4.Taiwan hiwin 3 axis roller linear rails
5.Taiwan OKADA 24 -Disc- atc
6.Electrical cabinet cold  air exchanger
Product Specification:
Item model
Unit
GMC1612
GMC2012
Size of worktable
mm
1000*1600
1000*2000
(X)Table move direction stroke
mm
1600
1600
(Y)Spindle slide moving direction stroke
mm
1300(1450)
1300
(Z)Spindle up and down move direction stroke
mm
800
800
Width of gantry
mm
1300
1300
High of Gantry
mm
1060
1060
Distance between spindle end face and worktable surface
mm
190-990
190-990
T-shaped groove for table
mm
7-22-140
7-22-140
Spindle specifications
-
BT50-190
BT50-190
Spindle transmission mode
Belt
rpm
6000; (1.5:1)
6000; (1.5:1)

ZF+Belt

6000; (4:1)
6000; (4:1)

Gear Head

6000; (4.4:1)
6000; (4.4:1)
Fast moving feed speed
m
15
15
Cutting feed rate
m
10
10
X/Y/Z axis ball guide gauge/pitch
mm
5010/5010/5010
6310/5010/5010
X/Y/Z axis quide gauge/slider quantity
-
X: 45/6 Roller rail
Y: 45/6 Roller rail
Z: Rectangle ram
X: 45/8 Roller rail
Y: 45/6 Roller rail
Z: Rectangle ram
X/y/z axis servo motor drive mode and drive ratio
-
Direct
Direct
Spindle motor recommended
kw
22
22
X/Y/Z three-phase servo motor recommended
NM
38/30/30
38/30/30
Dimension of optical machine
mm
3650*2400*3320
4450*2400*3320
Load-bearing table
T
2
3
Casting Machine
Kg
11
12

Details Display:

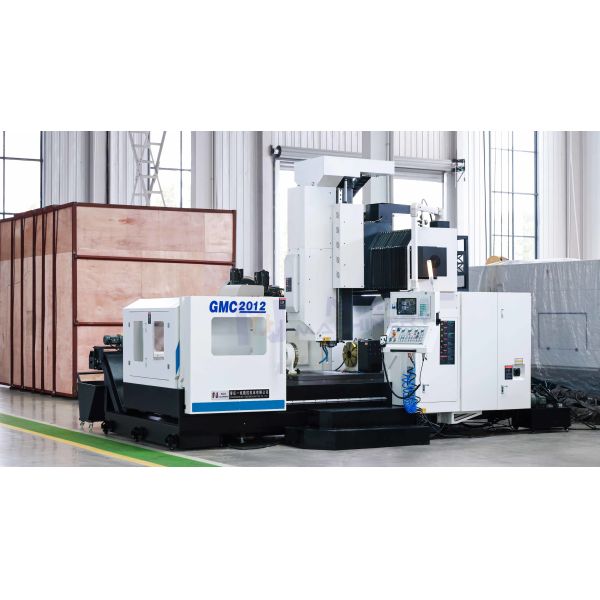

GMC2012 5 Axis Gantry CNC Machine 2 Meter CNC Milling Machine

GMC2012 5 Axis Gantry CNC Machine 2 Meter CNC Milling Machine

GMC2012 5 Axis Gantry CNC Machine 2 Meter CNC Milling Machine

GMC2012 5 Axis Gantry CNC Machine 2 Meter CNC Milling Machine
