GMC3022 CNC Milling Machine Gantry CNC Machine For Metal 2000X3000 Table Size

Name: GMC3022 CNC Milling Machine Gantry CNC Machine For Metal 2000X3000 Table Size
Brand: Zaozhuang NO.1
Price: 100000 USD

Buy cheap GMC3022 CNC Milling Machine Gantry CNC Machine For Metal 2000X3000 Table Size product

Brand Name : Zaozhuang NO.1

Model Number : GMC3022

Certification : CE,ISO

Place of Origin : Shandong, China

MOQ : 1 set

Price : 100000USD

Payment Terms : T/T

Supply Ability : 100 sets/month

Delivery Time : 45 days after getting the deposit.

Packaging Details : Export standard wooden case or as customers' requirement

Work table size (width × length) (mm) : 2000X3000

X/Y/Z Axis stroke（mm） : 3000*2200*1000

Width of gantry(mm) : 2300

High of gantry(mm) : 1200

Spindle Specifications (Model/Installation Diameter) : BT50-Φ190

T-shaped groove for table(mm) : 9-28X200

Worktable load bearing : 10T

Contact Now

GMC3022 Cnc Milling Machine Gantry Machining Center for Metal 2000X3000 Table Size

Product Description:

The GMC3022 is a high-rigidity, high-precision gantry machining center featuring premium cast iron bed and precision roller guides for exceptional stability and durability. Equipped with high-power motorized spindle and advanced CNC system, it enables high-speed precision machining, making it ideal for manufacturing large complex components in energy equipment and rail transportation industries.

Standard Configuration:

Syntec 22MA CNC control system
BT50 Taiwan 6000 RPM spindle
Taiwan HIWIN precision ball screws
Taiwan HIWIN 3-axis roller linear guides
Taiwan OKADA 24-disc ATC
Electrical cabinet air cooling exchanger

Detailed Configuration:

spindle unite:kenturn/OKADA/volis
electricals:Schneider
tool magazine:OKADA/AIMACH
tool cylinder:tenio
lubrication pump:HERG
bearing:SKF/NACHI
coupling:R+W

Product Specification:

  	 			Item model
 			Unit
 			GMC 3022

 			Worktable size (width x length)
 			mm
 			2000X3000

 			X-axis travel
 			mm
 			3000

 			Y-axis travel
 			mm
 			2200 (sub-stroke 2700)

 			Z-axis travel
 			mm
 			1000

 			Gantry width
 			mm
 			2300

 			High of gantry
 			mm
 			1200

 			Distance from spindle end to worktable
 			mm
 			280-1280
(Optional heightening 180,250,300,430)

 			Workbench T-slots
 			-
 			9-28X200

 			Spindle specifications
 			-
 			BT50-Φ200

 			Spindle drive mode
 			ZF moderate
 			-
 			Speed 4500r／min Gear Ratio 4:1


 			ZF deceleration + belt, optional
 			-
 			Speed 3500r／minGear Ratio 8:1,2:1

 			Rapid feed speed
 			m／min
 			10

 			Cutting feed speed
 			m／min
 			6

 			X, Y, Z axis ball screw specification / pitch
 			-
 			X:8020,Y:6316,Z:5010

 			X, Y, Z axis rail specification / slide number
 			-
 			X axis:Roller guide rail 55/14 (two rails)；
Y-axis: roller guide Z-55/7; Z axis: rectangular slide rail
 			(Optional, 5 sliders on Y axis)

 			X, Y, Z axis servo motor transmission mode and transmission ratio
 			-
 			X-axis planetary gear transmission 4:1；
 			Y-axis planetary gear transmission 3:1；
 			Z-axis direct drive 1:1

 			Recommended spindle motor selection
 			-
 			22kW Wide Area Motor

 			X, Y, Z three-phase servo motor recommendation
 			-
 			X:50N·m；Y:40N·m；
 			Z:30N·m(Holding brake)

 			Size of optical machine (length x width x height)
 			mm
 			9750x4740x4100

 			Workbench load-bearing
 			t
 			10

 			Light machine weight
 			t
 			31

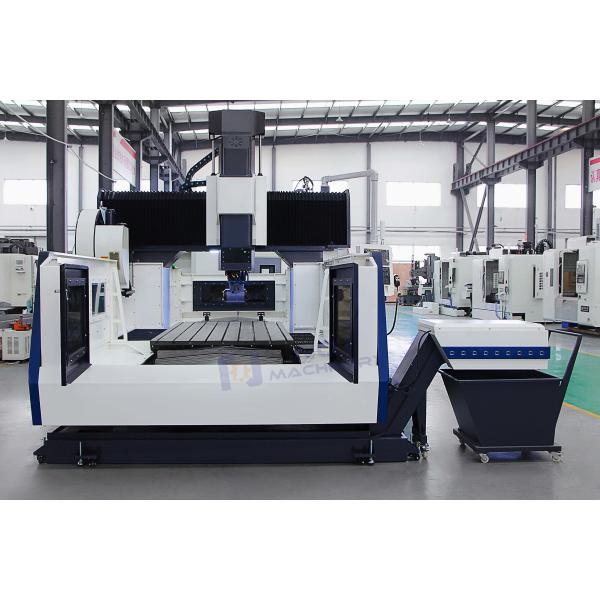

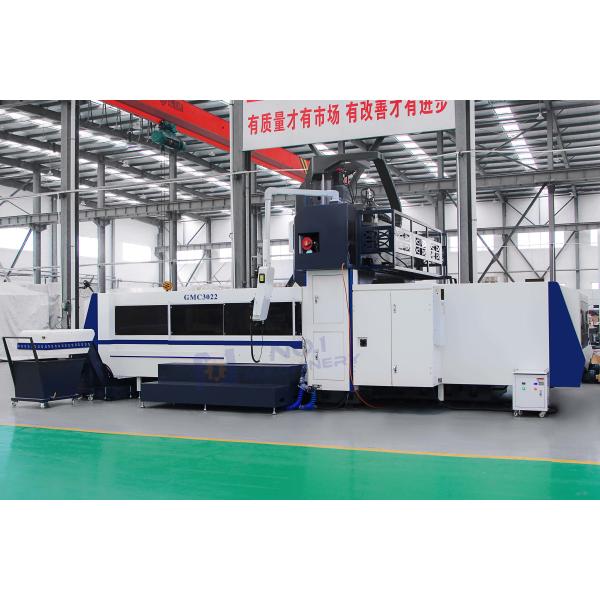

Details Display:

GMC3022 CNC Milling Machine Gantry CNC Machine For Metal 2000X3000 Table Size

Product Tags:

GMC3022 CNC Milling Machine Gantry CNC Machine For Metal 2000X3000 Table Size Images

Inquiry Cart 0

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Zaozhuang No. 1 Cnc Machine Tool Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

GMC3022 CNC Milling Machine Gantry CNC Machine For Metal 2000X3000 Table Size

GMC3022 CNC Milling Machine Gantry CNC Machine For Metal 2000X3000 Table Size

GMC3022 cnc milling machine

2000X3000mm cnc milling machine

Metal gantry cnc machine

GMC3022 CNC Milling Machine Gantry CNC Machine For Metal 2000X3000 Table Size Images

Item model		Unit	GMC 3022
Worktable size (width x length)		mm	2000X3000
X-axis travel		mm	3000
Y-axis travel		mm	2200 (sub-stroke 2700)
Z-axis travel		mm	1000
Gantry width		mm	2300
High of gantry		mm	1200
Distance from spindle end to worktable		mm	280-1280 (Optional heightening 180,250,300,430)
Workbench T-slots		-	9-28X200
Spindle specifications		-	BT50-Φ200
Spindle drive mode	ZF moderate	-	Speed 4500r／min Gear Ratio 4:1
	ZF deceleration + belt, optional	-	Speed 3500r／minGear Ratio 8:1,2:1
Rapid feed speed		m／min	10
Cutting feed speed		m／min	6
X, Y, Z axis ball screw specification / pitch		-	X:8020,Y:6316,Z:5010
X, Y, Z axis rail specification / slide number		-	X axis:Roller guide rail 55/14 (two rails)； Y-axis: roller guide Z-55/7; Z axis: rectangular slide rail (Optional, 5 sliders on Y axis)
X, Y, Z axis servo motor transmission mode and transmission ratio		-	X-axis planetary gear transmission 4:1； Y-axis planetary gear transmission 3:1； Z-axis direct drive 1:1
Recommended spindle motor selection		-	22kW Wide Area Motor
X, Y, Z three-phase servo motor recommendation		-	X:50N·m；Y:40N·m； Z:30N·m(Holding brake)
Size of optical machine (length x width x height)		mm	9750x4740x4100
Workbench load-bearing		t	10
Light machine weight		t	31
